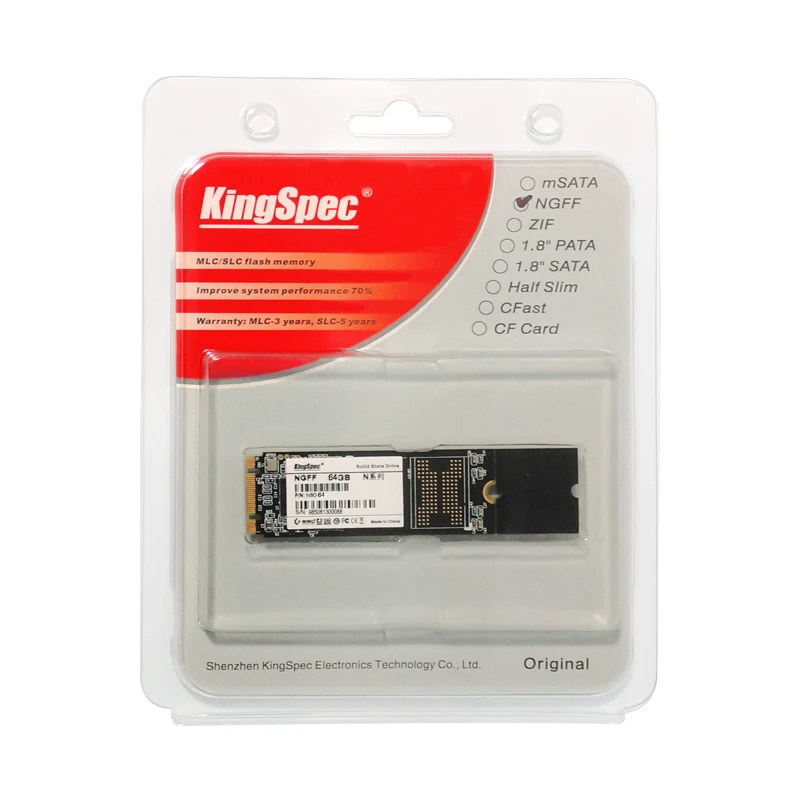

2280 M2 SSD Kingspec NGFF M.2 SSD 64GB 128GB 256GB 512GB internal solid state hard drive disk module for Laptop Tablet ultrabook
Please format the SSD first before you use it according to the video we show,if it still not working,please contact us drsctly,thanks!
1. Why I bought 64GB USB, but the computer show it is about 58GB?
. Flash memory producers are using decimal arithmetic:
1KB=1000Bit, 1MB = 1000KB, 1G = 1000MB
‚. Calculated, the operating system using binary arithmetic:
1KB=1024Bit, 1MB = 1024KB, 1GB = 1024MB
And there is a hidden flash area occupy some capacity.
That is why there are some differences between display capacity and nominal capacity of flash memory product.
8GB = approximately 7.4GB-7.6GB
16GB = approximately 14GB-15GB
32GB = approximately 28GB-30GB
64GB = approximately 58GB-60GB
128GB = approximately 120GB-125GB
Please Note: All the SSDs we sold in our store are the Original Brand items and we can provide the Statement if you like, so please note it is the normal thing if there are a little difference in the Appearance/Colors/Packing/Capacity/Speed of SSDs.
Therefore, we never accept the Disputes about all the Notices we list,so please kindly contact us firstly before you place order or have any questions,tks!
NGFF Series M.2 SSD for Ultrabook/Intel Platform
NGFF is an ideal Intel storage solution for ultrabook as it is smaller than mSATA. The NGFF physical dimension is 80mmx22mm, the thickness can be 2.75mm and 3.85mm. You can try to use this item to fit for your machine’s different interface.
|General||Form factor||80mm(L) X 22mm(W)X3.2mm(H)|
|Performance||Capacity||64GB / 128GB /256GB /512GB|
|Sustained Read (for reference only)||480~510MB|490~520MB/s|490~540MB/s|490~540MB/s|
|Sustained Write (for reference only)||100~150MB/s|150~210MB/s|170~350MB/s|190~390MB/s|
|4KB Random Read IOPS||69000|
|4KB Random Write IOPS||40000|
|Average Access time||0.05ms|
|Storage Media||NAND Flash||MLC|
|Power Consumption||input Voltage||3.3V±5%|
|Reliability& Endurance||Write endurance|
|ECC||Supports BCH 8/16/24/40 bits ECC|
|Bad Block Management|
|Available unit||Available||NO EOL|
|Testing Platform||CPU:Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset:Intel® Z68 Express Chipset Memory:Kingston KHX1600C9D3C1K2/4GX OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Server Express Chipset SATA AHCI Controller BIOS Settings: AHCI Mode|
|Physical Dimensions & Weight||Height(mm)||80mm|
2. Product pictures (for reference only):
3. Package (for reference only):
4. Company Information:
KingSpec Electronic Technology company’s brief introduction:
We KingSpec are a solid state disk manufacturer, specialized in designing, developing, manufacturing and selling SSD products as well as other storage devices like USB flash drives, memory card, and dom. Besides designing and producing our products, we also do the OEM and ODM. Our factory had passed ISO9001:2008 certification and had membership with SSDA, the SSDs are CE, FCC certificated. After several years of effort, our independent R&D SSD products have entered the global market successfully and won excellent public praise from our client comes from Europe, America, Southeast Asia and many other countries.
5. Factory pictures:
7. Company fair:
What to look for when buying an SSD
SSDs, or solid state drives, are a great way to speed up your laptop or PC. Unlike a hard drive an SSD doesn’t contain any moving mechanical components and it’s because of this that the SSD is able to find your data quickly, giving you rapid access to applications and files.
Other benefits of an SSD:
- Less noise when computer or laptop is running and accessing files
- Improves battery life of a laptop or power use of a desktop
- Protects files and documents as there are no moving parts — ideal for people who travel with their laptop
- Significantly reduce boot up times, often hardware with an SSD can boot up in less than a minute
- Saving and opening programs documents in remarkable time
SSDs aren’t usually primarily used for storage. Capacities since they first appeared on the market have been increasing however SSDs command a higher price per gigabyte than a traditional hard drive. If you’re looking for somewhere to store all of your larger files then you may want to invest in an internal hard drive or external hard drive instead. However, capacity is still important when buying an SSD — as a rule you should always buy more than you think you need.
Gamers: If you use your laptop or PC primarily for playing computer games you’ll need an SSD with a higher capacity to ensure that large files can be stored.
Students: If you’re working on writing documents and browsing sites to research, a large capacity isn’t essential, but it’s still beneficial.
Professionals: If you’re accessing a number of files daily and you work with more than one program at a time then you’ll need an SSD with a higher capacity. It will speed up the time it takes to access the programs and files you need.
Laptop or PC use
256GB — 512GB
256GB — 512GB
128GB — 256GB
Form factor is the physical size of the SSD and determines what device the SSD is compatible for. You will SSDs in sizes of 1.8″, 2.5″ and 3.5″, many of which will fit into the same SATA connectors as the hard drive would have.
SSDs are usually 2.5” or 1.8” and available in heights of 7mm and 9.5mm thickness and some laptops, mainly newer models, are only compatible with 7mm SSDs so it’s important to check the size of your SSD slot before you invest.
In terms of size, SSDs normally come in a standard size of 2.5”. SSDs for a PC may require a bracket to keep secure in a standard 3.5” bay where a hard drive would normally be kept.
As technology continues to adapt, so does storage. SSDs have got smaller and now there are mSATA SSDs which plug into an mSATA socket on a motherboard and are the ideal size for smaller notebook laptops. The smallest SSD to date is M.2 which is designed for very small laptops and tablets.
SATA I or III
All current models of hard drives, including SSDs use a SATA (Serial ATA) interface which connects the SSD to the motherboard and transmits data from the motherboard to the rest of the computer — the faster your SATA is, the quicker your computer will respond to requests. SATA I originally had a bandwidth of 150MB/s, then SATA II came along and had an improved bandwidth of 300MB/s. This is still common and available though it isn’t as fast. Most SSDs now have a SATA III interface which has a bandwidth of 600MB/s and is the fastest.
Multi-level or Single-level cell?
This is a type of memory technology. Multi-level cell (MLC) is more common, more complex and lower in price, however it also has lower durability. SLC on the other hand is more expensive, but uses a single cell to store one bit of data, making it faster and more reliable. The more bits of data per cell there are, the higher the capacity the cell needs to have. This is cheaper to make but means the cell will not last as long or be as efficient.
Read and write speeds
Write speeds are important to those who store a large amount of files to their computer, or often move files around. Choosing an SSD with a quicker write speed will reduce the time is takes to complete tasks, while an SSD with a quicker read speed will enable your computer to locate and access files faster.
Choosing your brand
SSDs have a very low failure rate and are a great addition to any laptop which is running slowly. However, buying an SSD from a reputable brand is always advised. KingSpec is 10 years SSD factory offers high-quality SSD products and you can trust that it is reliable.
